Fixed-point odor observation system LIMOS
Odor Sensor Technology
LIMOS is a stationary odor monitoring system that automates 24/7 measurement at
factory perimeters. Built on 30 years of odor sensor expertise.
Cloud Dashboard
ISMS Certified
2,000+ Sensors Sold
Who Should Use LIMOS?
Perfect for facilities that need continuous, automated odor management.
Continuous Boundary Monitoring
Need to monitor odor levels at factory perimeters or property
boundaries around the clock.
Reduce Manual Labor
Want to eliminate daily patrol-based odor measurements and free up
staff for other tasks.
Community Relations
Demonstrate proactive environmental commitment to local residents and
regulatory bodies.
Deodorizer Effectiveness
Continuously verify and document the performance of existing
deodorization equipment.
Complaint Response
Build an objective data archive to respond to odor complaints and
regulatory inspections.
DX Initiatives
Integrate odor monitoring into your digital transformation strategy
with cloud-based data management.
8 Reasons LIMOS Is Chosen
Engineered over 30 years of odor measurement expertise.
1. Fully Automated, Unmanned Operation
Deploy sensor units at measurement points. LIMOS collects data 24/7 in real-time via cloud,
eliminating manual patrol rounds. One parent unit manages up to 8 sensor units.
2. Data-Driven Protection
All measurement data is stored and exportable as CSV. Use historical records as objective
evidence during regulatory inspections or community inquiries.
3. Compact & Easy Setup
Only requires anchor-bolt mounting and power connection. Your existing contractors can
handle the installation—no specialized equipment needed.
4. Rich Options & Customization
Alert notifications, odor concentration conversion, wind speed/direction integration, and
more. Tailored to your specific odor management needs.
5. Field Test Before Purchase
We offer 1–2 week on-site demo tests with production-equivalent units. Verify sensor
response, communication reliability, and operational feasibility before committing.
6. Enterprise-Grade Security
ISMS (ISO/IEC 27001) certified. SSL encryption, IP restrictions, WAF/IDS protection,
vulnerability scanning, and cyber insurance included.
7. 30 Years of Sensor Expertise
Over 2,000 sensors sold. Internal calibration designed by certified Odor Judges (national
qualification). Metal-oxide semiconductor sensors with proprietary signal processing.
8. Annual Maintenance Only
Maintenance is required just once per year. No special skills needed—any staff member can
perform the procedure, keeping ongoing costs minimal.

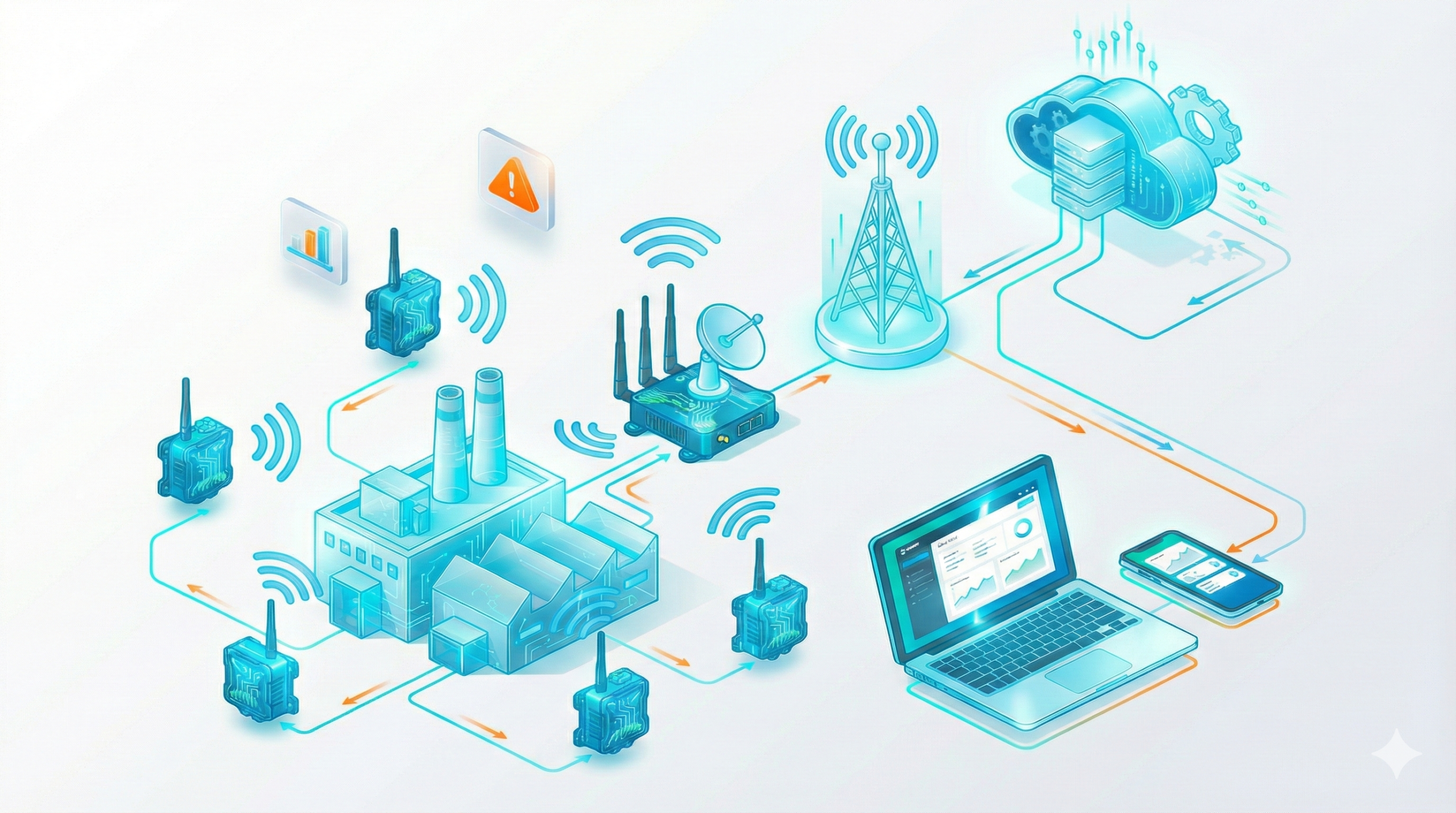

System Versions
Two Architectures Available
Wireless Communication Version
Local radio communication between parent and child units. Ideal
for sites without reliable internet.
Cloud Version
Mobile (cellular) communication with web browser management.
Access data from anywhere via PC or smartphone.
Smart Monitoring Features
Alert Notifications
Set threshold values. Receive instant email alerts when abnormal
readings are detected.
Odor Index Conversion
Display readings as odor concentration / odor index equivalent values
for regulatory compliance tracking.
Temperature & Humidity Compensation
Built-in correction algorithm minimizes environmental interference on
outdoor sensor readings.
Product Specifications
Sensor Unit (Child Unit)
| Parameter | Value |
|---|---|
| Measurement Target | Mixed gases (general odors) |
| Sensor Element | Metal-oxide semiconductor sensor |
| Sampling Method | Diaphragm pump (~400 ml/min) |
| Power Supply | 100V AC |
| Operating Temperature | 0–40°C |
| Dimensions (Sensor Unit) | W410 × H347 × D200 mm |
| Weight (Total 3 Units) | ~5.5 kg |
| Communication | Mobile data (cellular SIM) |
| Maintenance | Once per year |

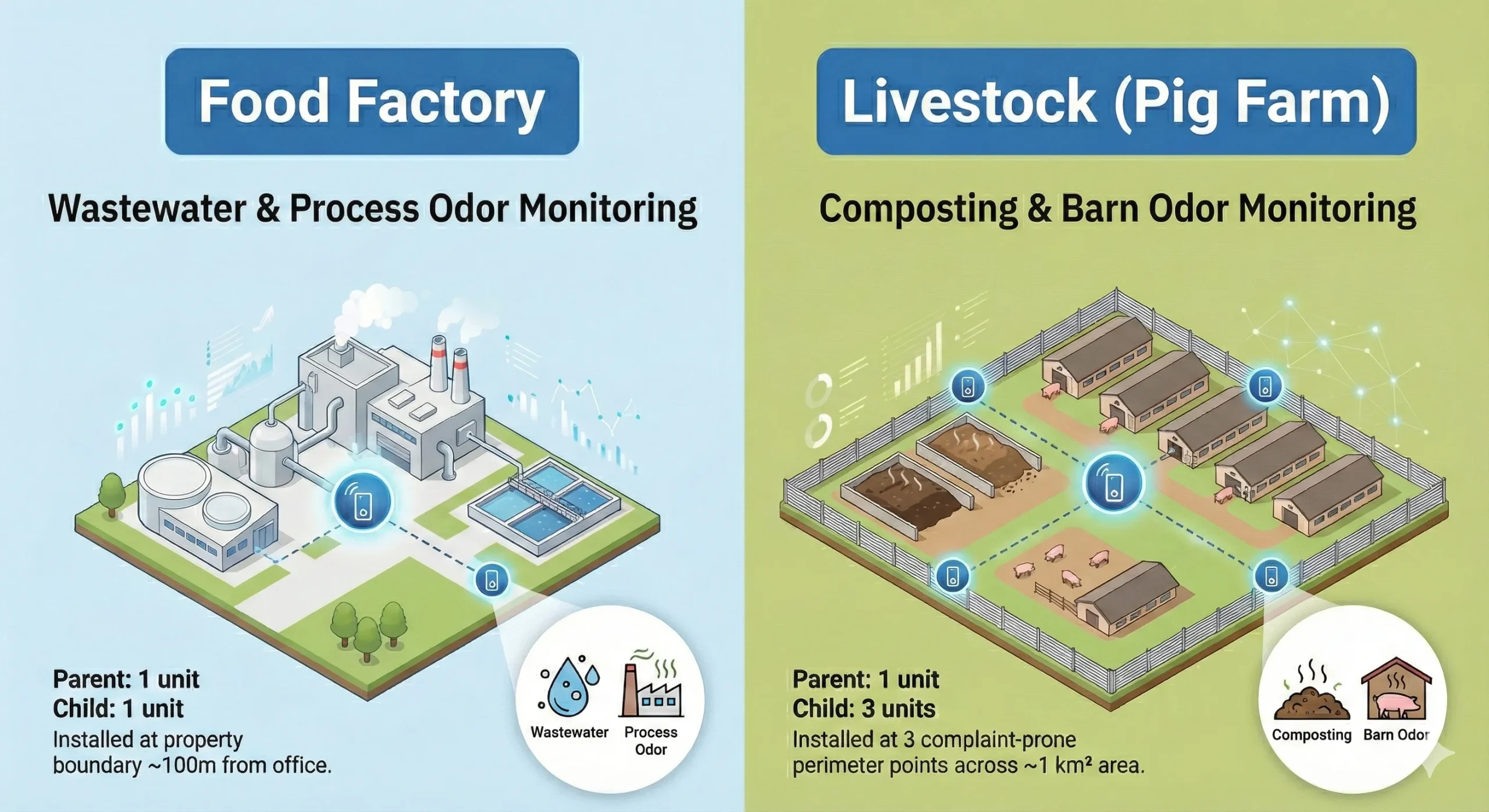

Case Studies
Wastewater & Process Odor Monitoring
Parent: 1 unit, Child: 1 unit. Installed at property boundary ~100m from office. Monitoring
wastewater and production process odors.
Composting & Barn Odor Monitoring
Parent: 1 unit, Child: 3 units. Installed at 3 complaint-prone perimeter points across ~1
km² area. Monitoring composting and barn odors.
Rental Option Available
Not ready to purchase? Try a 1-month rental to assess your facility’s odor situation. Available
with or without installation support.
FAQ
How does the odor sensor work?
LIMOS uses a metal-oxide semiconductor sensor with a diaphragm pump to draw in air samples.
The sensor detects changes in electrical resistance caused by odor molecules, converting
them into numerical readings.
What is the maintenance schedule?
Maintenance is required only once per year. The procedure is simple enough for any staff
member—no specialized technician necessary.
Can I try before buying?
Yes. We offer on-site demo tests of 1–2 weeks with production-equivalent units. You can also
opt for a 1-month rental plan.
How many sensor units can be connected?
One parent unit can manage up to 8 child sensor units, covering multiple measurement points
across your facility.
Is the data secure?
Yes. The system is ISMS (ISO/IEC 27001) certified with SSL encryption, IP access control,
WAF/IDS protection, and cyber insurance coverage. Data is stored in a Tier-4 data center in
Japan.
Ready to automate your odor monitoring?
Contact us for a free consultation, demo test, or rental inquiry.
