Microgel deodorizer

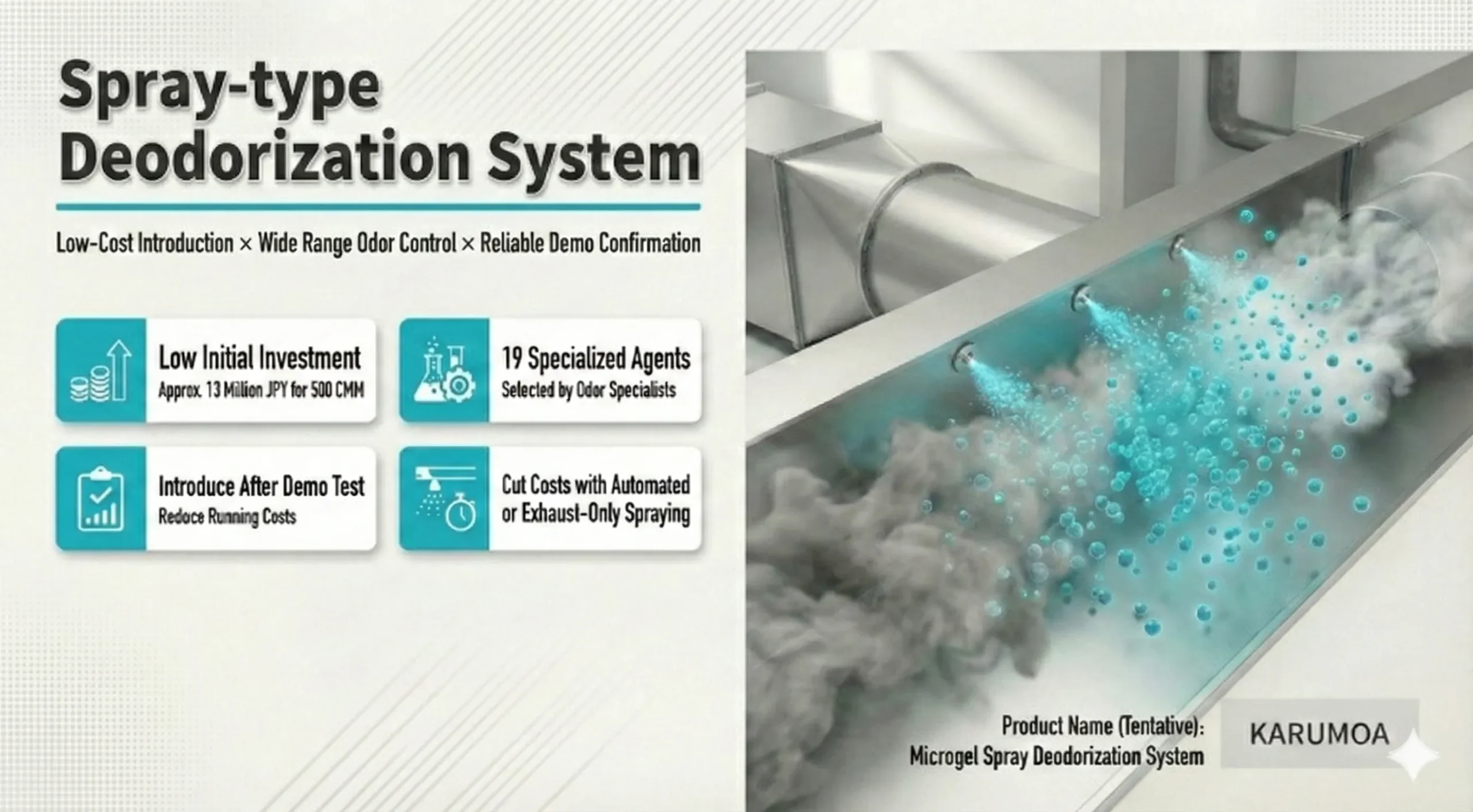

Deodorant spray deodorization system installed on an exhaust duct

Industrial Odor Control

Deodorant Spray System delivers cost-effective, low-pressure-drop odor control
using Microgel — a high-performance, fragrance-free deodorant spray for industrial exhaust.

Low Cost
Compact & Lightweight
Eco-Friendly
IoT Remote Monitoring

Request Consultation
View Specifications

Why Choose the Deodorant Spray System

Five advantages driving adoption across industries.

Low Initial Cost

Significantly cheaper than combustion, activated carbon, or scrubber systems. Near-zero
pressure loss eliminates the need for expensive fan upgrades.

Compact & Lightweight

Uses existing exhaust ducts as the reaction chamber. The system consists of only the spray
unit, piping, and nozzles — saving valuable floor space.

Adjustable Performance

Easily control spray volume based on operating conditions, wind direction, and odor
intensity. Optimize both deodorization and running costs in real time.

Eco-Friendly

Microgel is highly biodegradable and broken down by natural microorganisms. Zero CO₂
emissions — safe to release directly into the atmosphere.

IoT Remote Management

Monitor and control equipment remotely. View real-time usage data, receive automatic alerts,
and perform diagnostics without visiting the site.

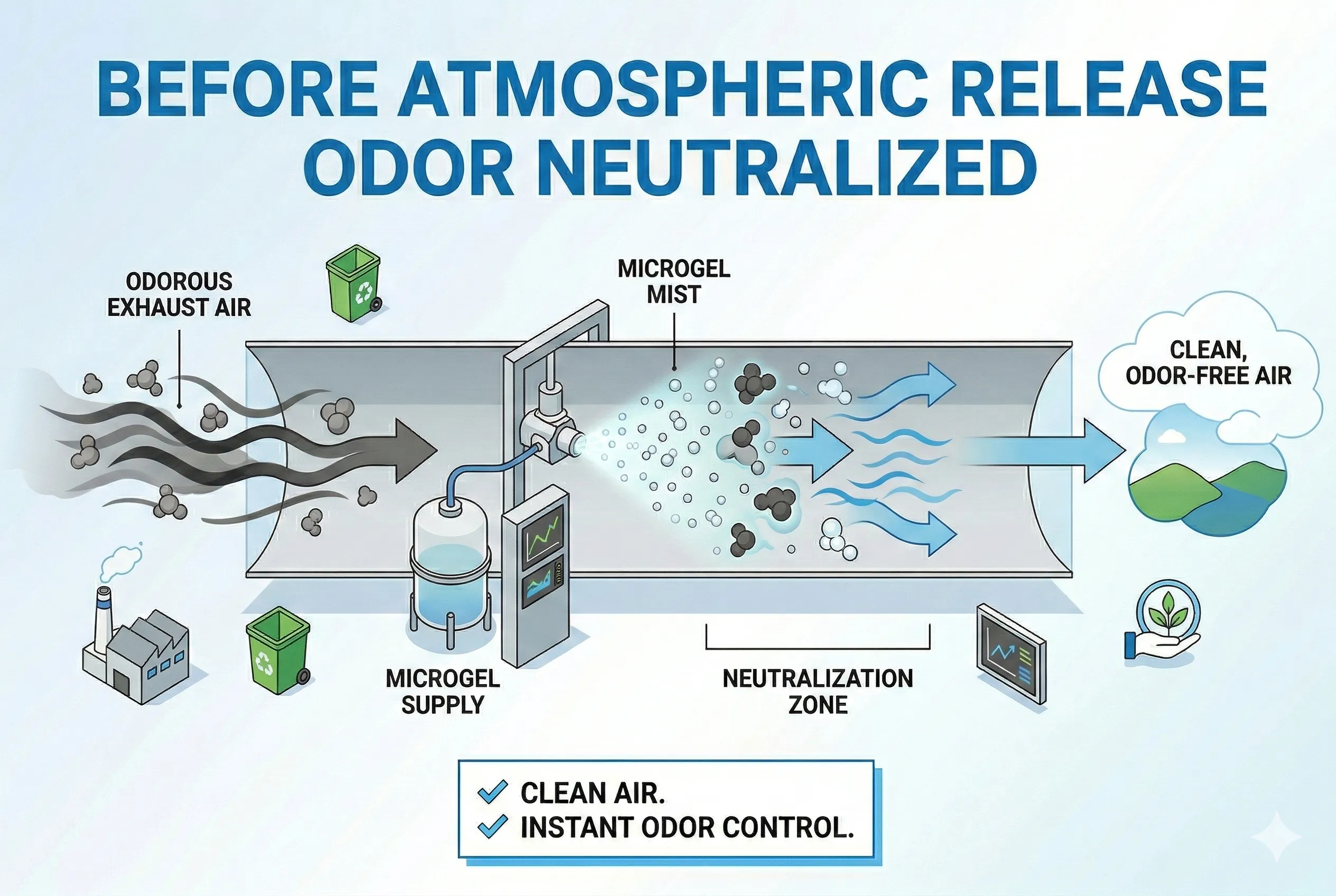

Diagram of Microgel spray inside industrial exhaust duct

How It Works

Simple yet Highly Effective

Spray Mechanism

Diluted Microgel is pumped from the spray unit to nozzles installed in the exhaust duct
or chamber. Two-fluid nozzles create a fine mist that mixes with odorous air,
neutralizing
odor compounds before atmospheric release.

Microgel Deodorant

Microgel is a fragrance-free deodorant using amphoteric polymer compounds. Upon contact
with odor molecules, it adsorbs and chemically neutralizes them — not masking, but
eliminating the odor at its source.

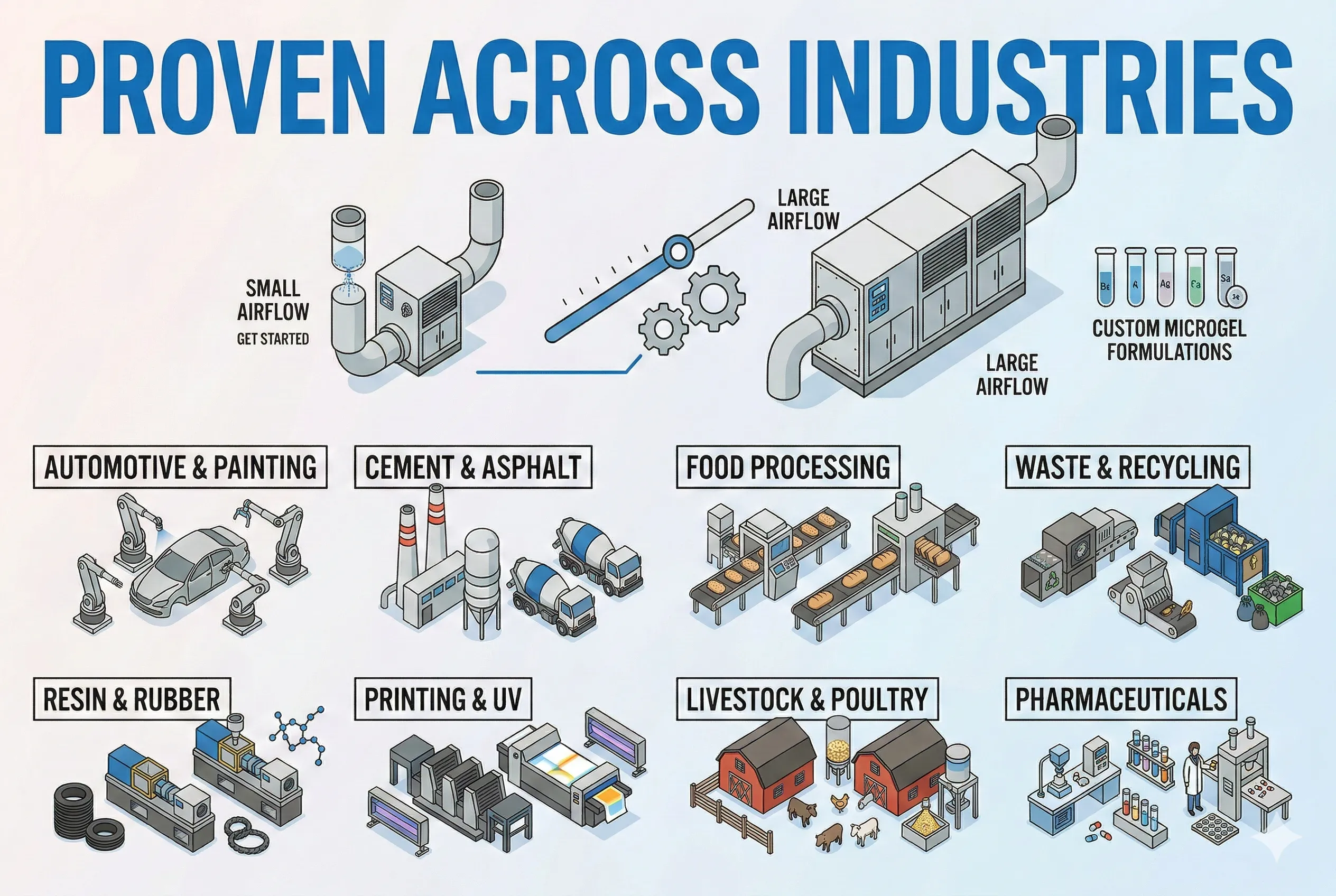

Proven Across Industries

Industrial factory interior with spray system installed

From small to large airflow applications, the spray system adapts to diverse odor challenges.
Custom Microgel formulations available for specific exhaust compositions.

Automotive & Painting

Paint booth exhaust in automotive plants.

Cement & Asphalt

Kiln exhaust and product manufacturing emissions.

Food Processing

Production line exhaust from diverse food factories.

Waste & Recycling

Composting facilities and intermediate treatment plants.

Resin & Rubber

Manufacturing and refining line exhaust.

Printing & UV

UV printing machine exhaust treatment.

Livestock & Poultry

Farm and composting facility odor control.

Pharmaceuticals

Surfactant manufacturing line exhaust.

Case Study: Cement Factory

Eliminating complaints from kiln exhaust with
9,000+ m³/min airflow.

Challenge

The Problem

A cement manufacturing plant faced neighborhood complaints due to strong kiln exhaust odors.
The exhaust volume exceeded 9,000 m³/min — too large for conventional treatment methods.

Result

90% Odor Reduction

On-site spray testing confirmed up to 90% deodorization efficiency. Nozzles were installed
directly through chimney inspection ports. Neighborhood complaints were fully resolved.

Risk Free

On-site Demo Testing

Before full installation, we conduct on-site spray demo tests using your actual exhaust.
Verify deodorization rate, optimal dilution ratio, and spray volume — all confirmed before
committing to purchase.

IoT Ready

Remote Monitoring

IoT-enabled control panels allow remote access to operating status, deodorant consumption,
and alarm notifications. Reduce on-site labor costs and respond faster to equipment issues.

System Overview

Parameter	Details
Deodorant	Microgel (fragrance-free, amphoteric polymer compound)
Spray Method	Two-fluid nozzle (compressed air + liquid)
Applicable Airflow	Small to large volume (scalable nozzle configuration)
Pressure Drop	Near zero (no duct obstruction)
Remote Monitoring	IoT-enabled (optional)
Environmental Impact	Biodegradable deodorant, zero CO₂ emissions

FAQ

How is the Microgel deodorant applied?

Diluted Microgel is pumped to two-fluid nozzles installed inside exhaust ducts or chambers.
The fine mist mixes with odorous air and neutralizes odor compounds before release.

Can you customize the deodorant for specific odors?

Yes. We have a wide range of Microgel formulations. If existing products don’t achieve
sufficient results, we can develop a custom formulation tailored to your specific exhaust
composition.

Is on-site demo testing available?

Yes. We offer on-site spray demo tests using a portion of your actual exhaust to confirm
deodorization efficiency, optimal dilution ratio, and spray volume before full installation.

Do you ship internationally?

Yes, international shipping is available. Please contact us to discuss logistics and
delivery options for your region.

What is the shelf life of Microgel?

Microgel has a stable shelf life when stored properly. Exact duration depends on the
specific formulation. Contact us for detailed storage guidelines.
